XH2.54 Connector

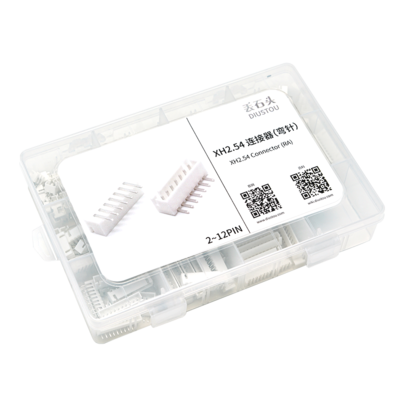

XH2.54 Connector (RA).png

XH2.54 Connector (RA)

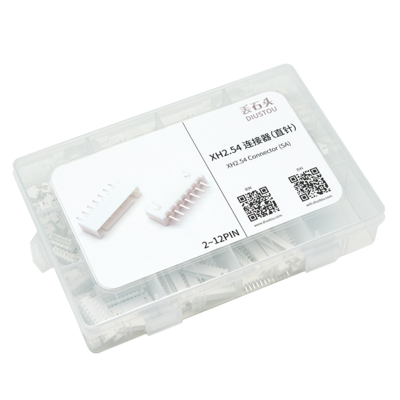

XH2.54 Connector (SA).png

XH2.54 Connector (SA)

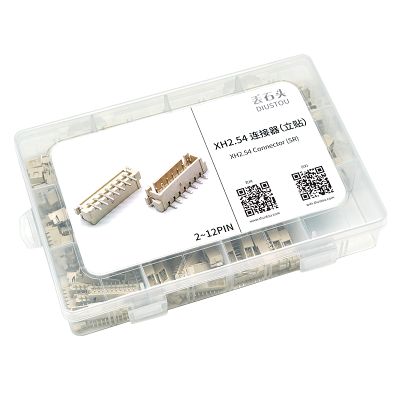

XH2.54 Connector (SR).jpg

XH2.54 Connector (SR)

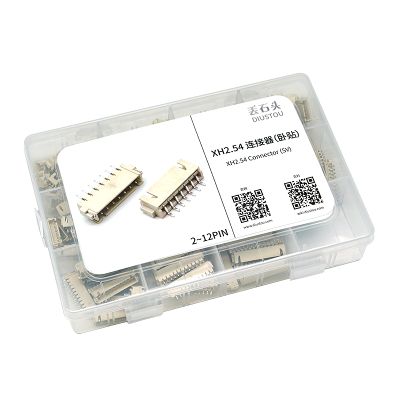

XH2.54 Connector (SV).jpg

XH2.54 Connector (SV)

Information

Categories: Connector

Brand: Diustou

Description
Features
  • XH2.54 Connector

Interfaces

XH2.54

Related products

{{{related}}}

Product Characteristics

  • Applicable Wire Gauge: AWG.#30 - AWG.#22
  • Rated Voltage: 250V DC/AC
  • Rated Current: 3A DC/AC
  • Withstand Voltage: 1000V AC
  • Contact Resistance: Max 20mΩ
  • Insulation Resistance: Min 1000MΩ
  • Operating Temperature: -25℃ - +85℃
  • Number of PINs: 2PIN – 12PIN
  • Insulator: LCP
  • Contact Pin: Brass

Product Specifications

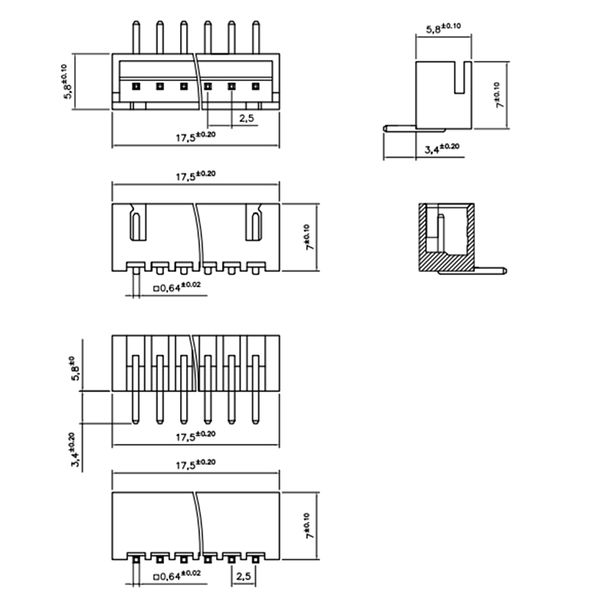

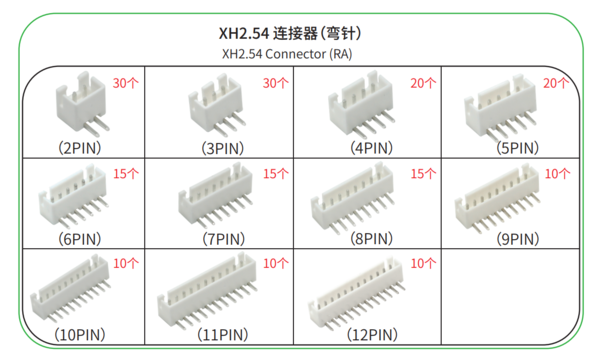

XH2.54 Connector – Angled Pin

XH2.54 Connector—弯针.png

XH2.54 Connector—弯针1.jpg

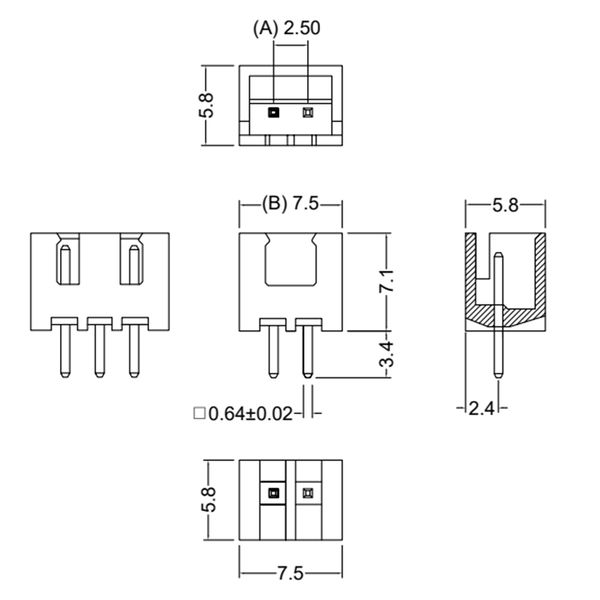

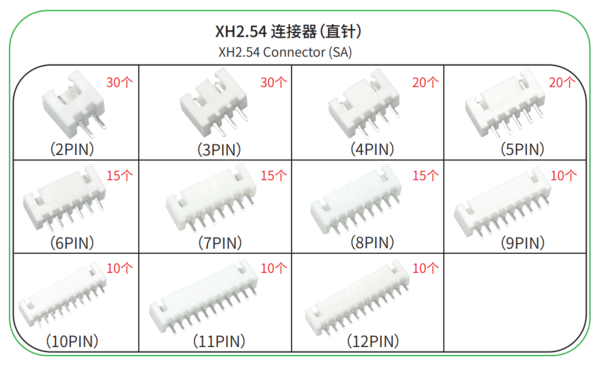

XH2.54 Connector – Straight Pin

XH2.54 Connector—直针.png

XH2.54 Connector—直针1.jpg

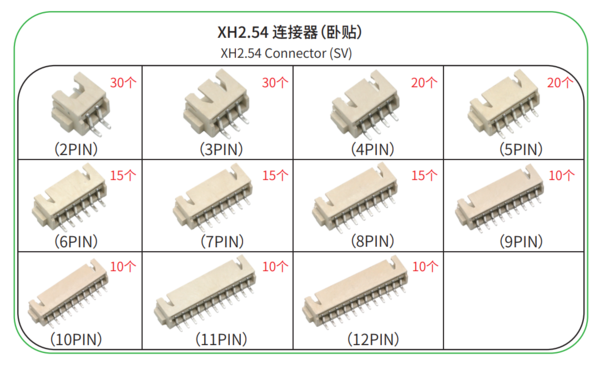

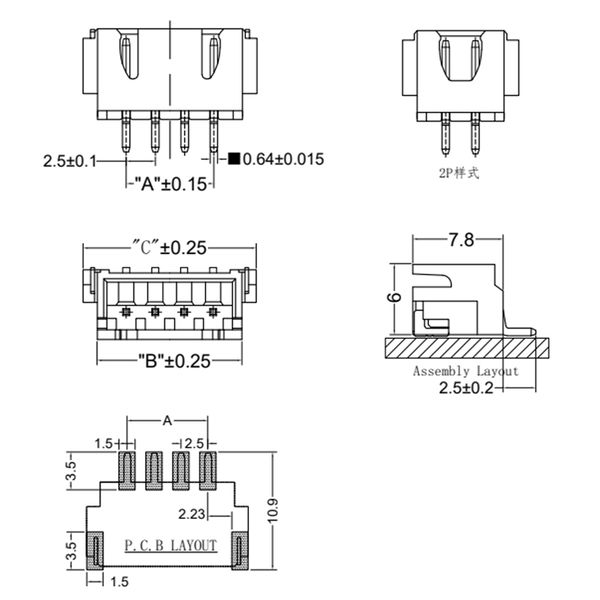

XH2.54 Connector – SMD (Horizontal Mount)

XH2.54 Connector—卧贴.png

XH2.54 Connector—卧贴1.jpg

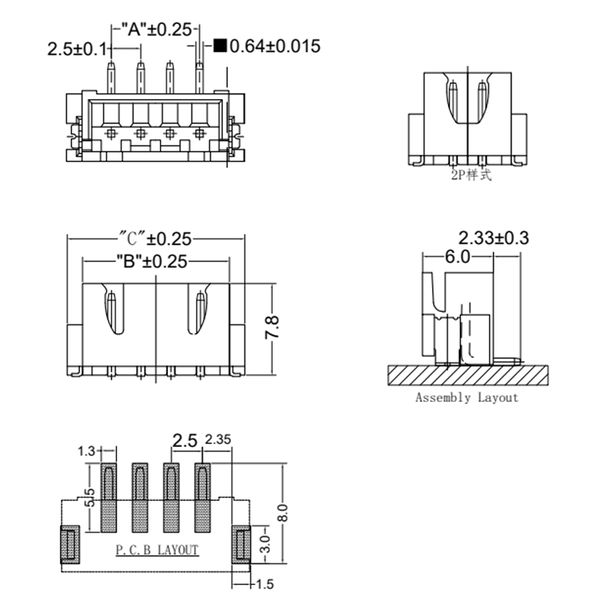

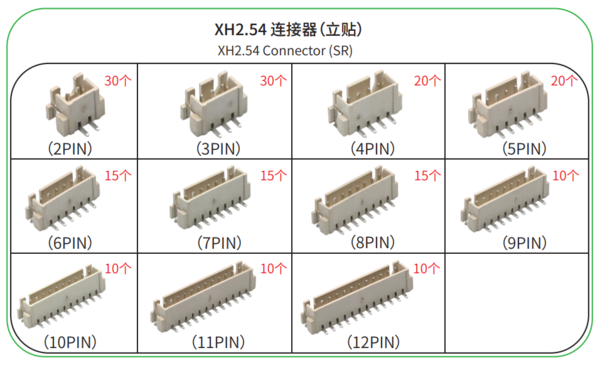

XH2.54 Connector – SMD (Vertical Mount)

XH2.54 Connector—立贴.png

XH2.54 Connector—立贴1.jpg
