Product Introduction

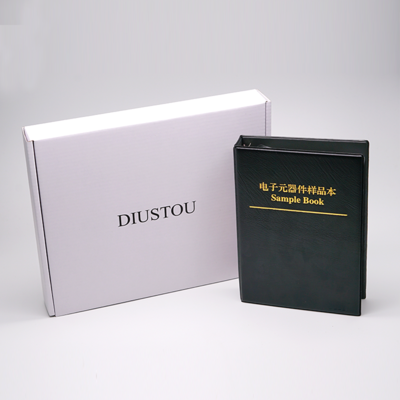

- This product includes 170 types of SMD resistors with different resistance values and a precision of 1%. They are available in five different package sizes: 0201, 0402, 0603, 0805, and 1206. Each type comes with a complete model label, and there are 50 pieces of each resistance value to meet daily needs. The sample book adopts a book-style design for easy reference, enhancing work efficiency.

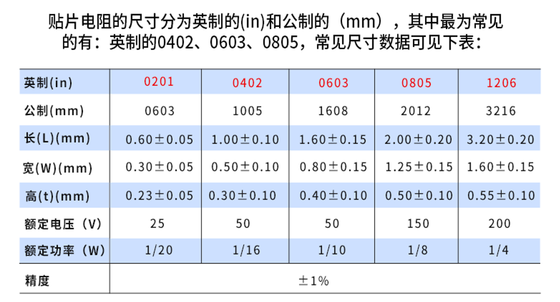

Product Dimensions

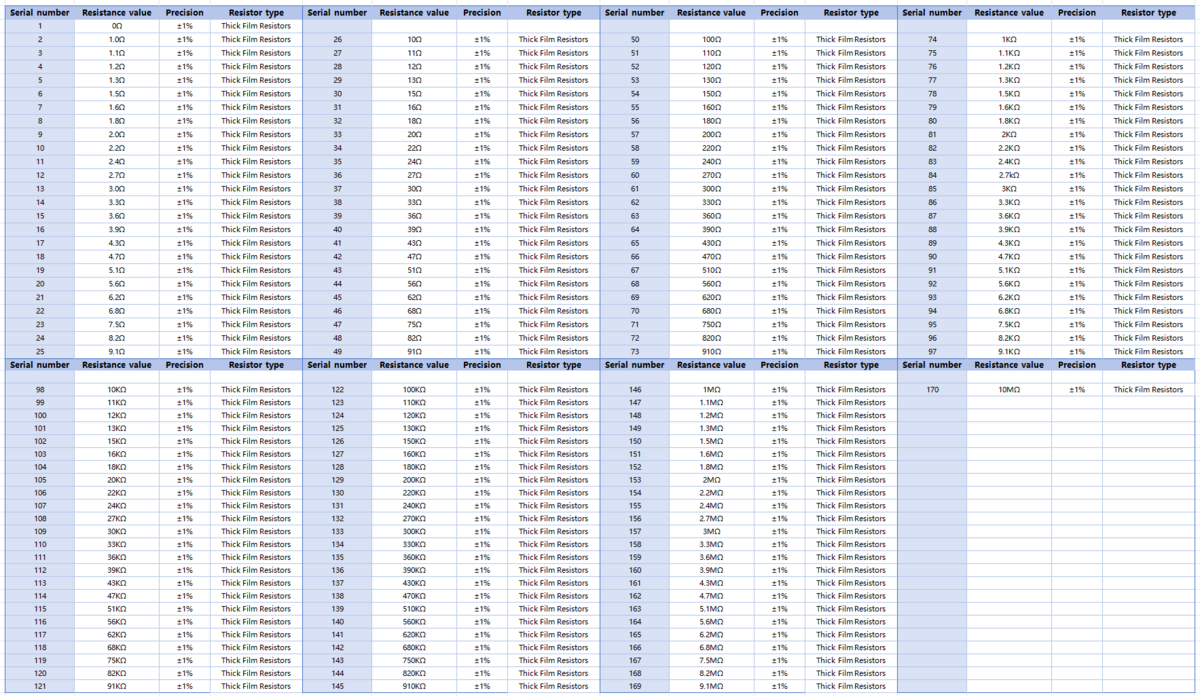

Product Parameters
Notes
- Generally, the resistance value on the surface of SMD resistors can be represented in several formats: three-digit, four-digit, and with an 'R' in the number.
- Three-digit: The first two digits represent the actual number, and the last digit represents the power of 10. For example, 103 represents a resistance of 1010^3Ω = 10KΩ.
- Four-digit: The first three digits represent the actual number, and the last digit represents the power of 10. For example, 1013 represents a resistance of 10110^3Ω = 101KΩ.
- With an 'R': The 'R' can be understood as a decimal point. For example, 1R3 represents a resistance of 1.3Ω.
