USB 485 PRO

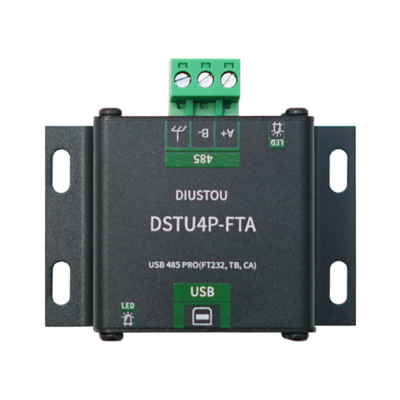

USB 485 PRO 示意图.png

USB 485 PRO (FT232, TB, 1, CA)

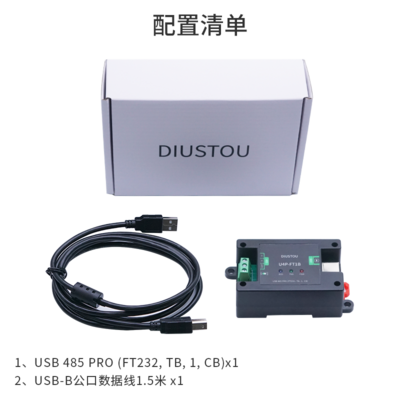

USB 485 PRO 示意图1.png

USB 485 PRO (FT232, TB, 1, CB)

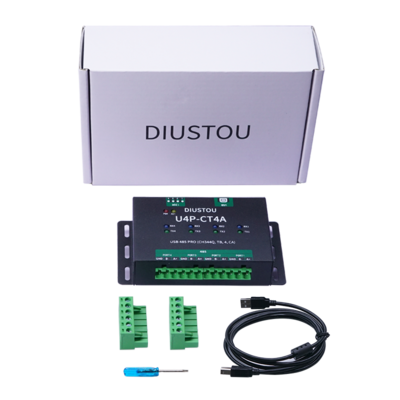

USB 485 PRO (CH344Q, TB, 4, CA) 示意图.png

USB 485 PRO (CH344Q, TB, 4, CA)

Information

Categories: USB RS485

Brand: Diustou

Description
Features
  • Supports data conversion between USB and RS485 interfaces
  • Supports simultaneous data conversion, convenient and efficient.

Interfaces

USB RS485

Related products

Product Features

USB 485 PRO (FT232, TB, 1, CA)

  • Utilizes industrial-grade chips FT232 and SP3485 for high-speed, stable, reliable, and compatible communication.
  • Equipped with a USB-B interface and 5.08mm terminal blocks for smooth and secure connections.
  • Employs large-package components for enhanced stability and reliability.
  • Features independent power and signal isolation circuits.
  • Incorporates an ESD protection circuit on the USB side to effectively prevent electrostatic damage and protect downstream circuits and devices.
  • The RS485 side is equipped with overcurrent protection, surge protection, and lightning gas discharge protection circuits.
  • The board includes reserved 120R termination resistor pads to enhance signal transmission stability and reduce interference.
  • Supports baud rates up to 2Mbps (In practical applications, the baud rate supported by this module is limited by the baud rates supported by the connected devices at both ends and needs to be adjusted according to the actual situation.)
  • Onboard two LED indicators for indicating the transmission and reception status of circuit signals.
    • USB side indicator: The green light is on when receiving data on the USB side.
    • 485 side indicator: The green light is on when receiving data on the 485 side.
  • Aluminum alloy housing with oxidized matte finish, precise cutouts, sturdy and durable, and exquisite craftsmanship.

USB 485 PRO (FT232, TB, 1, CB)

  • Utilizes industrial-grade chips FT232 and SP3485 for high-speed, stable, reliable, and compatible communication.
  • Equipped with a USB-B interface and 5.0mm screw-type terminal blocks for smooth and secure connections.
  • Employs large-package components for enhanced stability and reliability.
  • Features independent power and signal isolation circuits.
  • Incorporates an ESD protection circuit on the USB side to effectively prevent electrostatic damage and protect downstream circuits and devices.
  • The RS485 side is equipped with overcurrent protection, surge protection, and lightning gas discharge protection circuits.
  • Onboard 120R termination resistor selection DIP switch to enhance signal transmission stability.
  • Supports baud rates up to 2Mbps (In practical applications, the baud rate supported by this module is limited by the baud rates supported by the connected devices at both ends and needs to be adjusted according to the actual situation.)
  • Onboard three LED indicators for indicating the transmission and reception status of circuit signals.
    • PWR indicator (red): Power indicator.
    • TXD indicator (green): RS485 data transmission indicator, data flow: USB->RS485.
    • RXD indicator (blue): RS485 data reception indicator, data flow: RS485->USB.
  • Rail-mounted ABS eco-friendly housing, compact size, easy installation, and cost-effective.

USB 485 PRO (CH344Q, TB, 4, CA)

  • Utilizes original CH344Q chip and SP485 for 480Mbps high-speed USB interface communication, reliable, and compatible.
  • Equipped with a USB-B interface and 5.08mm terminal blocks for smooth and secure connections.
  • Features independent power and signal isolation circuits.
  • Incorporates an ESD protection circuit on the USB side to effectively prevent electrostatic damage and protect downstream circuits and devices.
  • The RS485 side is equipped with overcurrent protection, surge protection, and lightning gas discharge protection circuits.
  • Onboard 120R termination resistor selection DIP switch to enhance signal transmission stability and reduce interference.
  • Supports baud rates up to 3Mbps (In practical applications, the baud rate supported by this module is limited by the baud rates supported by the connected devices at both ends and needs to be adjusted according to the actual situation.)
  • Onboard four LED indicators for indicating the transmission and reception status of circuit signals.
    • Red indicator: Power indicator.
    • Yellow indicator: ACT pin indicator, indicates the completion status of USB configuration.
    • Green indicator: 4-channel 485 signal transmission indicator, data flow: USB->485.
    • Blue indicator: 4-channel 485 signal reception indicator, data flow: 485->USB.
  • Aluminum alloy housing with oxidized matte finish, precise cutouts, sturdy and durable, and exquisite craftsmanship.

Testing Method

USB 485 PRO (FT232, TB, 1, CA) and USB 485 PRO (FT232, TB, 1, CB)

  • Connect the USB 485 PRO to a USB-to-485 serial module.
    • A to A
    • B to B
  • Connect the USB data cable and the USB-to-485 serial module to the computer, open two serial port assistants, and open the COM ports corresponding to the USB data cable and the serial module respectively.
  • Use the two serial port assistants to alternately send data and observe if the other serial port assistant receives the corresponding data.

USB 485 PRO (CH344Q, TB, 4, CA)

  • Connect PORT1 to PORT2 and PORT3 to PORT4 of the module.
    • A to A
    • B to B
  • Connect the USB data cable to the computer, open four serial port assistants, and open the COM ports corresponding to the four ports (PORT1~PORT4).
  • Use the two serial port assistants connected to the ports to alternately send data and observe if the other serial port assistant receives the corresponding data.

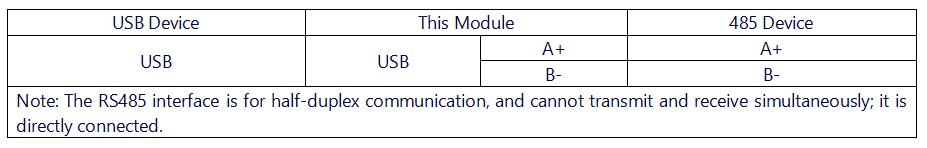

Hardware Connection

  • USB 485 PLUS 硬件连接.png

Note

  • Fully consider the lightning protection design and anti-interference design of the 485 bus. When transmitting over long distances in the field, connecting the module's "ground" terminal to the earth can effectively reduce interference and provide lightning protection, making the 485 bus safer. For short-distance transmission indoors, it is not necessary to connect to the earth.

Driver Installation

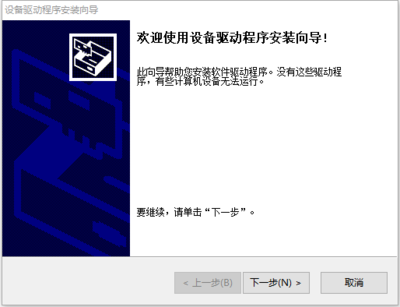

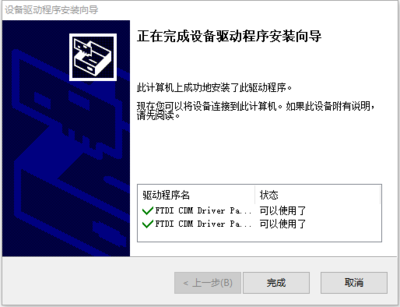

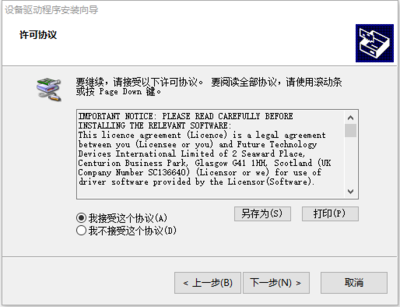

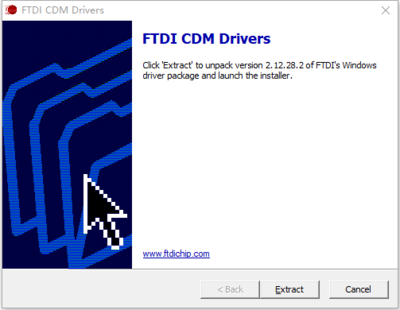

1. Download and install the Diver

FT232RL USB TTL 使用说明 1.png

FT232RL USB TTL 使用说明 2.png

FT232RL USB TTL 使用说明 3.png

FT232RL USB TTL 使用说明 4.png

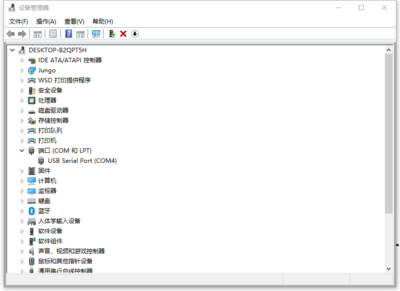

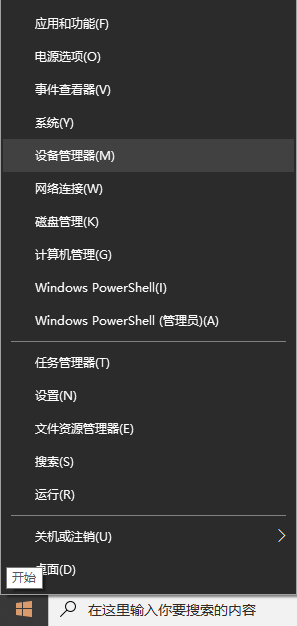

2. Verify if the driver is installed successfully. Right-click the Windows logo in the bottom left corner and open "Device Manager".

FT232RL USB TTL 使用说明 5.png

Expand "Ports (COM & LPT)". If there is a "USB Serial Port" device, the installation is successful.

FT232RL USB TTL 使用说明 6.png

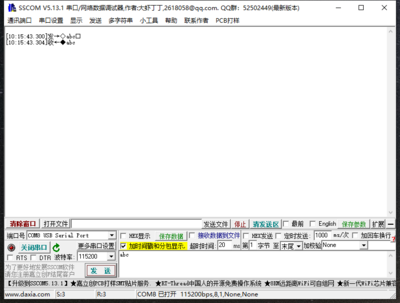

3. Verify if the module is working properly. Short-circuit the TXD and RXD pins of the module, open theserial port debugging software, , and click "Open Serial Port". Enter any content in the text box, then click the "Send" button. Under normal circumstances, the software will receive and display the same content.

FT232RL USB TTL 使用说明 7.png
